Hilberseimer
Ludwig Karl
Urban Schemes
by
Online since December 2008
Last changes: 27th of December 2014




'A NEW SETTLEMENT UNIT' by Ludwig Hilberseimer from 'The New City : Principles Of Planning' 1944
I.) Img. _01

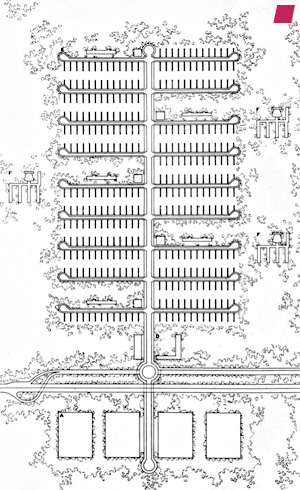

Caption: » 80. A NEW SETTLEMENT UNIT. A-Industrie. B-Main highway. C-Local highway. D-Commercial area. E-Residential area. F-Schools in the park area. «


'The New City : Principles of Planning'
1944

http://www.archive.org/

» We need a new city element to replace the archaic block or gridiron system. The structure of this new settlement unit […] should permit, not only a general solution of all the different parts of the city and their relation to each other, but also free and unhindered urban growth. « I.) 1


'Project for the Marquette Park, Chicago' - undated (after 1945), Ludwig Hilberseimer LUDWIG HILBERSEIMER 1885/1967 Rassegna, Number 27, settembre 1986 [upside down !]
II.) Img. _02

Geoposition
41° 46' 4.62'' N, 87° 42' 10.40'' W

Project for the Marquette Park, Chicago, undated (after 1945 [1955 ?]) [this drawing is actually upside down!]

The plan shows gradual (perhaps even piecemeal) 'erosion of the urban grid', as promoted by Hilberseimer […], developing the area north [!] of Marquette Park, Chicago (W 67th Street - W 59th Street) from a high density grid typology to a low density fish spine [ladder] (cul de sac) structure, projecting an 'Urbs in Horto' garden eden city ideal.

In its [unintended] reversal - true insight!



TOP

References


  1. 'The New City - PRINCIPLES OF PLANNING' by Ludwig Hilberseiner, [With an Introduction by Mies van der Rohe], published by Paul Theobald Chicago 1944 http://www.archive.org/

    1 [page 104] http://www.archive.org/
    Img. _01 [page 106]
  2. IN:
    '27 Rassegna (Ludwig Hilberseimer 1885/1967)',
    (journal: Rassegna, Rivista trimestrale, Anno VIII, 27/3 - settembre 1986), Editrice C.I.P.I.A., Bologna, 1986

    Img. _02 'Chicago, la Großstadt americana', by Peter Beltemacchi (Illustration 4, page 68)
    Label: 'Project for the Marquette Park, Chicago, undated (after 1945). Ink on Paper 50.8 x 76.2 cm'

    [shown as printed - upside down !]


TOP
